True Significant Trends (TST): the full pipeline in one call

Implements the complete workflow for robust statistical inference of monotonic trends in gridded raster time series. The main entry point of sptrends: chains prewhiten(), trend_test(), slope_estimator(), and fdr_correction(), in that order, into the True Significant Trends (TST) workflow. Each step is optional and all underlying parameters remain available directly on the individual functions – workflow_tst() does not replace them, it saves wiring the calls together for the common case, and returns a single "tst" object with its own print(), summary(), and plot() methods.

Usage

workflow_tst(
  x,
  prewhiten = TRUE,
  prewhiten_args = list(),
  export_dw = FALSE,
  cmk_args = list(),
  theil_sen = TRUE,
  theil_sen_args = list(),
  alpha = 0.05,
  moran_check = FALSE,
  fdr_method = c("BKY", "BH", "BY"),
  q = 0.05,
  bky_implementation = c("multtest", "original"),
  report = TRUE,
  verbose = TRUE,
  n_cores = 1
)

Arguments

x

A terra::SpatRaster; each layer is one time step, in increasing chronological order.

prewhiten

(Preprocessing) Logical. If TRUE (default), run prewhiten() first. If FALSE, x is supplied to the trend test unmodified.

prewhiten_args

A named list of extra arguments forwarded to prewhiten() (e.g. list(dw_method = "test")). Workflow-managed transport and reporting arguments cannot be overridden here.

Known limitation with irregular time spacing and TFPW_Y: this workflow has no top-level t argument of its own – if your observation times are irregularly spaced (not one evenly-spaced step per layer) and you need a genuine time axis for trend_test()/slope_estimator() rather than the default 1:n layer index, you must supply the correct t yourself in prewhiten_args, cmk_args and theil_sen_args separately, and keep them consistent by hand. TFPW_Y specifically drops the first observation (see prewhiten()'s own "Value" section), so the t you pass to cmk_args/theil_sen_args after using TFPW_Y must itself have its own first element dropped to stay aligned with the one-layer-shorter prewhitened series – this workflow does not do that adjustment for you. Not an issue for TFPW_WS (default), which keeps every layer.

export_dw

Logical. If TRUE, include the Durbin-Watson prewhitening diagnostics (diagnostics from prewhiten()) in the return value, even though the trend test itself does not need them. Ignored if prewhiten = FALSE. Default FALSE.

cmk_args

(Trend detection) A named list of extra arguments forwarded to trend_test() (e.g. list(window_size = 5L) for a broader CMK region, or list(method = "MK", n_cores = 4)). The default empty list preserves the 3 by 3 CMK region described by Neeti and Eastman (2011), as implemented in TerrSet's Kendall module; changing it creates a TST-inspired variant rather than an exact reproduction of the published workflow. See prewhiten_args above for a known limitation with irregular time spacing and TFPW_Y if you pass t here.

theil_sen

(Slope estimation) Logical. If TRUE (default), also compute the Theil-Sen slope (magnitude of change) via slope_estimator() – see "Computational considerations" above before leaving this on for long time series.

theil_sen_args

A named list of extra arguments forwarded to slope_estimator() (e.g. list(max_pairs = 20000, n_cores = 4)). Ignored if theil_sen = FALSE. smooth_neighbourhood stays at slope_estimator()'s own default (FALSE) unless set here (e.g. list(smooth_neighbourhood = TRUE)) – see "Theil-Sen has a real computational cost" above for why. See prewhiten_args above for a known limitation with irregular time spacing and TFPW_Y if you pass t here.

alpha

Numeric vector of significance threshold(s) used for reporting the (uncorrected) trend result – supplied to trend_summary() as alpha, and used as the single threshold for trend_maps(): 0.05 if it is one of the values in alpha, otherwise the strictest (smallest) value supplied. Defaults to a single 0.05, matching q's own default – a normal analysis picks one alpha and one q, not several at once. Pass a vector explicitly (e.g. alpha = c(0.1, 0.05, 0.01)) to compare several thresholds side by side in trend_summary_table instead. See "Statistical assumptions: alpha and q" above.

moran_check

(Multiple testing) Logical. Forwarded to fdr_correction() as-is – if TRUE, runs spatial_autocorrelation() on the trend p-value raster as part of the FDR step. Default FALSE (Moran's I stays a separate, deliberate diagnostic – see the package vignette).

fdr_method

Character vector supplied as method to fdr_correction(). The Usage displays all supported values: "BKY", "BH" and "BY"; when omitted, "BKY" remains the default originally used in the TST methodology (Gutiérrez-Hernández & García, 2025): it adapts to the estimated proportion of true nulls, gaining statistical power over BH while targeting false-discovery-rate control. Supply one method or a vector of methods; BY is the conservative option for arbitrary dependence. Set to NULL to skip FDR correction entirely.

q

Numeric. Target FDR level, forwarded to fdr_correction() – not an adjusted or renamed alpha: it limits the expected false discovery proportion among rejected hypotheses. See fdr_correction() and "Statistical assumptions: alpha and q" above.

bky_implementation

"multtest" (default, unchanged from previous versions) or "original", forwarded to fdr_bky() via fdr_correction() – see fdr_bky()'s own documentation for the difference between the two. Ignored if fdr_method does not include "BKY".

report

(Reporting) Logical. If TRUE (default), each step prints its own summary table and draws its diagnostic plots as it runs (same effect as calling each function directly with report = TRUE). Set to FALSE for silent, plot-free programmatic use.

verbose

Logical. Print progress messages and elapsed time for the complete workflow. Per-stage times are also returned in timing.

n_cores

Integer. 1 (default): every step runs sequentially. > 1: builds one parallel::makeCluster() PSOCK cluster, shared across every parallel step below (currently the CMK and Theil-Sen steps) instead of each step creating and tearing down its own – avoiding the repeated process-spawn overhead of doing that two or three times in a row for what is, from the caller's own perspective, one parallel request. The cluster is closed automatically when workflow_tst() returns. Setting n_cores inside cmk_args/theil_sen_args directly still works exactly as before (each step falls back to building its own cluster from that value) – but only when this top-level n_cores is left at its default of 1; when both are set, this one wins and the per-step n_cores inside cmk_args/theil_sen_args is ignored, since a single shared cluster and per-step separate ones cannot both apply to the same call.

Value

An object of class c("tst", "sptrends") (the second, shared with workflow_rta()'s own return value, is for print()/summary()/ plot() – see print.sptrends()): a list with

prewhiten

The full output of prewhiten(), or NULL if prewhiten = FALSE.

dw_diagnostics

The prewhitening diagnostics raster, only if export_dw = TRUE.

trend

The $stats field of trend_test()'s own output (a SpatRaster with the trend statistics themselves) – not the full trend_test() return value, which also includes neighbourhood/window_size.

trend_summary_table

The output of trend_summary() (invisible data frame).

theil_sen

The $slope field of slope_estimator()'s own output (a SpatRaster), or NULL if theil_sen = FALSE. Not the full slope_estimator() return value. Not smoothed by default (see the theil_sen_args note above) – check theil_sen_smoothed if you need to know whether it was (e.g. because you set it yourself).

theil_sen_smoothed

Logical: whether theil_sen was computed with smooth_neighbourhood = TRUE. FALSE by default; NULL if theil_sen = FALSE.

fdr

The output of fdr_correction(), or NULL if fdr_method = NULL.

timing

A named list of elapsed seconds per step actually run (prewhiten, CMK, theil_sen, fdr – only the ones that ran are present), each measured with Sys.time() around that step's own function call. Coarse (whole-step, not line-by-line) and not a substitute for a proper profiler, but enough for noticing which step dominates on your own data.

Use print() for a one-line summary, summary() for the full detail, and plot() for a map – see plot.sptrends().

Details

Unlike many trend-analysis workflows, TST separates preprocessing, hypothesis testing, effect-size estimation, and multiple-testing correction into independent but composable steps. workflow_tst() simply orchestrates those steps into a reproducible pipeline without hiding any of their parameters.

Moran's I (spatial_autocorrelation()) is not part of this pipeline: it is an independent, general spatial diagnostic. Its optional use on inferential fields can reveal dependence relevant to FDR interpretation, but cannot verify all assumptions of an FDR procedure – see the package vignette.

Function type: Core function – the complete published TST workflow.

Typical use

raster time series
    |
workflow_tst()
    |
selective prewhitening -> CMK -> Theil-Sen -> adaptive FDR
    |
one `tst` result containing every stage

For seasonal input, first use compute_anomalies() and pass its anomalies raster. For long series, consider setting max_pairs through theil_sen_args; see "Computational considerations" below.

Methodological details

How it works.

Input raster
    |
(optional) prewhiten          -- removes serial autocorrelation
    |
trend_test                    -- is there a monotonic trend? (CMK)
    |
(optional) slope_estimator    -- how fast? (Theil-Sen or OLS)
    |
(optional) FDR correction     -- which cells survive multiple testing?
    |
"tst" object

The four steps run in this fixed order because each one's own assumptions depend on what came before it: prewhitening needs to happen before the trend test, since the test assumes independent observations; the slope is estimated on the same (optionally prewhitened) series the test itself used, so the two describe the same data; and FDR correction needs the test's own p-values to exist first. Prewhitening, slope estimation, and FDR correction are each individually optional – not every analysis needs all three (a quick exploratory look at significance alone might skip slope and FDR entirely; data already known to have negligible serial correlation might skip prewhitening) – but the trend test itself is not optional, since every other step either feeds into it or consumes its output. The returned object keeps every intermediate result it computed (see "Value" below), not only the final one, so that any step's own output can be inspected or reused without recomputing the whole pipeline.

Statistical assumptions: alpha and q. This is one of the most common mistakes in gridded trend analysis, so it is worth spelling out: alpha (e.g. 0.05) is defined for a single hypothesis test. A raster is not one test – it is one test per cell, potentially thousands of them run simultaneously. Applying alpha cell by cell, as if each cell were the only test being run, is exactly the multiple-testing error this package's FDR step exists to fix (see the "Warning" section of ?trend_test); it is not a harmless simplification.

It is common practice to set q equal to alpha (e.g. both 0.05) for convenience and comparability between the uncorrected and corrected results reported here – this function does not enforce that, alpha and q are independent arguments. But equal values does not mean equal meaning: alpha bounds the error rate of each individual cell's test, while q bounds the expected proportion of false positives among all the cells called significant after correction (see fdr_correction() for the full distinction). Do not read trend_summary_table (based on alpha, uncorrected) and the FDR results (based on q) as answering the same question just because the numbers match. Unlike alpha, which this function reports at three conventional levels for context (see alpha below), q = 0.05 has little reason to change: it is the standard target FDR level in the literature this package builds on, and lowering it (e.g. to 0.01) mainly costs statistical power rather than offering a meaningfully different guarantee.

Statistical assumptions: monotonicity and seasonality. Every step here (prewhitening, the Contextual Mann-Kendall test, Theil-Sen) is designed around a monotonic trend – a consistent tendency to increase or decrease – not a periodic/seasonal cycle. If x has a seasonal cycle (e.g. raw monthly data with an annual signal), remove it first with compute_anomalies() and pass the anomalies to workflow_tst(), not the raw seasonal series.

Computational considerations. Unlike the Mann-Kendall S statistic, the Theil-Sen slope needs every pairwise slope in the series (n*(n-1)/2 per cell) to take their median – it cannot be accumulated as a running sum, so it does not scale the same way. For short series (a few dozen time steps) this is unnoticeable; for long series (hundreds to thousands of steps, e.g. multi-decade monthly data) it can become the slowest step in the whole workflow. theil_sen = TRUE by default, to match the published TST workflow, but for long series consider theil_sen = FALSE, or tune theil_sen_args (max_pairs to subsample pairs, n_cores to parallelise) – see slope_estimator(). smooth_neighbourhood stays at slope_estimator()'s own default (FALSE) unless you set it yourself via theil_sen_args = list(smooth_neighbourhood = TRUE): that mechanism is not part of the published TST method (neither TST nor RTA originally included any such smoothing – it is this package's own optional addition on top of both), so there is no principled reason for workflow_tst() and workflow_rta() to default to different values for it – see ?slope_estimator's "Optional queen-neighbourhood smoothing" section for exactly what it does and why it is off by default.

Limitations. The workflow targets monotonic trends and does not detect abrupt breaks, periodicity, or general nonlinear change. Optional stages permit exploratory variants, but only the complete default configuration reproduces the published TST workflow.

Quality assurance. Each component is validated independently in its own function. Workflow-level tests additionally verify stage order, optional prewhitening, argument forwarding, shared-cluster behaviour, sequential/parallel equivalence, timings, S3 structure, summaries, plots, and propagation of raw and FDR-corrected results. See ?sptrends for the internal release protocol and external numerical controls.

References

Source of this workflow (primary reference – this pipeline is a direct implementation of it):

• Gutiérrez-Hernández, O. and García, L.V. (2025) Uncovering true significant trends in global greening. Remote Sensing Applications: Society and Environment, 37, 101377. doi:10.1016/j.rsase.2024.101377

Step 1, selective AR(1) prewhitening (see prewhiten() for the full reference list, including the Durbin-Watson gate):

• Wang, X.L. and Swail, V.R. (2001) Changes of Extreme Wave Heights in Northern Hemisphere Oceans and Related Atmospheric Circulation Regimes. Journal of Climate, 14(10), 2204-2221.

Step 2, Contextual Mann-Kendall (see trend_test() for the full reference list, including the foundational Mann-Kendall statistic it builds on):

• Neeti, N. and Eastman, J.R. (2011) A Contextual Mann-Kendall Approach for the Assessment of Trend Significance in Image Time Series. Transactions in GIS, 15(5), 599-611. doi:10.1111/j.1467-9671.2011.01280.x

Step 3, Theil-Sen slope (see slope_estimator() for the full reference list):

• Theil, H. (1950) A rank-invariant method of linear and polynomial regression analysis. Indagationes Mathematicae, 12, 85-91 (Part I; published in three parts). No DOI available (pre-DOI-era publication).

• Sen, P.K. (1968) Estimates of the regression coefficient based on Kendall's tau. Journal of the American Statistical Association, 63, 1379-1389. doi:10.1080/01621459.1968.10480934

Step 4, FDR correction – BKY (default) and BH (see fdr_bky() and fdr_correction() for the full reference lists):

• Benjamini, Y., & Hochberg, Y. (1995) Controlling the False Discovery Rate: A Practical and Powerful Approach to Multiple Testing. Journal of the Royal Statistical Society: Series B, 57, 289-300. doi:10.1111/j.2517-6161.1995.tb02031.x

• Benjamini, Y., Krieger, A. M., & Yekutieli, D. (2006) Adaptive Linear Step-Up Procedures that Control the False Discovery Rate. Biometrika, 93(3), 491-507. doi:10.1093/biomet/93.3.491

See also

Other pipeline functions: workflow_rta(), workflow_trends()

Examples

# \donttest{
# Annual mean NDVI from the bundled environmental dataset.
r <- read_ordered_stack(example_data("vhp_ndvi"))
#> Temporal order auto-detected with pattern '(19[0-9]{2}|20[0-9]{2})'.
#> Automatic mode: order detected from file names. For higher reliability -- especially if the series is not annual -- supplying 'files' explicitly (with 'time' or 'cycle_type') is recommended. See ?read_ordered_stack.

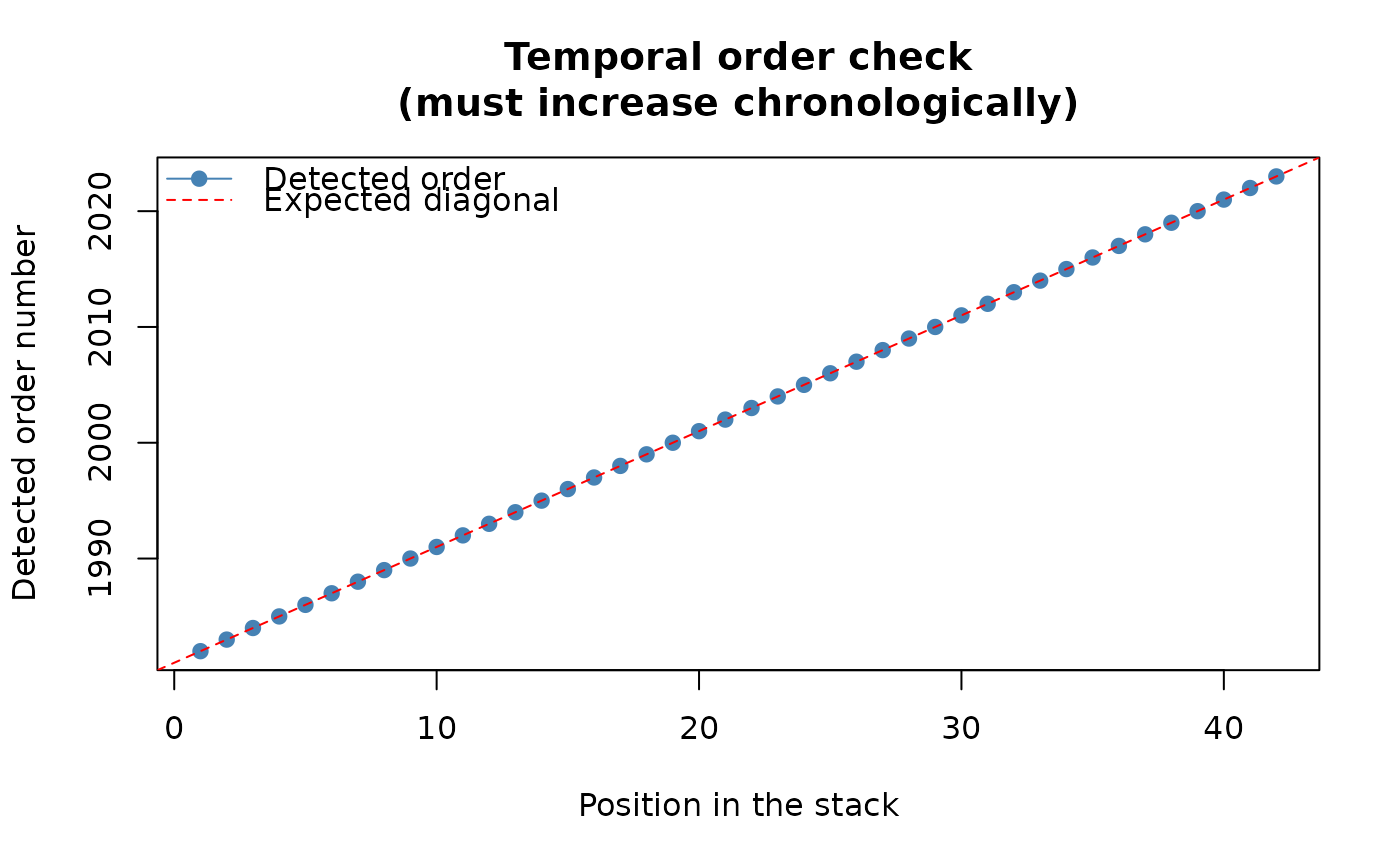

#> Temporal order verification (mandatory, cannot be skipped):
#>  stack_position detected_number                         file
#>               1            1982 VHP_SMN_annual_ndvi_1982.tif
#>               2            1983 VHP_SMN_annual_ndvi_1983.tif
#>               3            1984 VHP_SMN_annual_ndvi_1984.tif
#>               4            1985 VHP_SMN_annual_ndvi_1985.tif
#>               5            1986 VHP_SMN_annual_ndvi_1986.tif
#>               6            1987 VHP_SMN_annual_ndvi_1987.tif
#>               7            1988 VHP_SMN_annual_ndvi_1988.tif
#>               8            1989 VHP_SMN_annual_ndvi_1989.tif
#>               9            1990 VHP_SMN_annual_ndvi_1990.tif
#>              10            1991 VHP_SMN_annual_ndvi_1991.tif
#>              11            1992 VHP_SMN_annual_ndvi_1992.tif
#>              12            1993 VHP_SMN_annual_ndvi_1993.tif
#>              13            1994 VHP_SMN_annual_ndvi_1994.tif
#>              14            1995 VHP_SMN_annual_ndvi_1995.tif
#>              15            1996 VHP_SMN_annual_ndvi_1996.tif
#>              16            1997 VHP_SMN_annual_ndvi_1997.tif
#>              17            1998 VHP_SMN_annual_ndvi_1998.tif
#>              18            1999 VHP_SMN_annual_ndvi_1999.tif
#>              19            2000 VHP_SMN_annual_ndvi_2000.tif
#>              20            2001 VHP_SMN_annual_ndvi_2001.tif
#>              21            2002 VHP_SMN_annual_ndvi_2002.tif
#>              22            2003 VHP_SMN_annual_ndvi_2003.tif
#>              23            2004 VHP_SMN_annual_ndvi_2004.tif
#>              24            2005 VHP_SMN_annual_ndvi_2005.tif
#>              25            2006 VHP_SMN_annual_ndvi_2006.tif
#>              26            2007 VHP_SMN_annual_ndvi_2007.tif
#>              27            2008 VHP_SMN_annual_ndvi_2008.tif
#>              28            2009 VHP_SMN_annual_ndvi_2009.tif
#>              29            2010 VHP_SMN_annual_ndvi_2010.tif
#>              30            2011 VHP_SMN_annual_ndvi_2011.tif
#>              31            2012 VHP_SMN_annual_ndvi_2012.tif
#>              32            2013 VHP_SMN_annual_ndvi_2013.tif
#>              33            2014 VHP_SMN_annual_ndvi_2014.tif
#>              34            2015 VHP_SMN_annual_ndvi_2015.tif
#>              35            2016 VHP_SMN_annual_ndvi_2016.tif
#>              36            2017 VHP_SMN_annual_ndvi_2017.tif
#>              37            2018 VHP_SMN_annual_ndvi_2018.tif
#>              38            2019 VHP_SMN_annual_ndvi_2019.tif
#>              39            2020 VHP_SMN_annual_ndvi_2020.tif
#>              40            2021 VHP_SMN_annual_ndvi_2021.tif
#>              41            2022 VHP_SMN_annual_ndvi_2022.tif
#>              42            2023 VHP_SMN_annual_ndvi_2023.tif

#> Stack built: 42 layers, 146 x 338 cells.
#> >> [read_ordered_stack()] elapsed: 0.10 s

# Run the full workflow: prewhiten -> Contextual Mann-Kendall ->
# Theil-Sen -> FDR-BKY (only BKY, not BH -- see the "fdr_method"
# argument below for why).
result <- workflow_tst(r, report = FALSE, verbose = FALSE)

# A "tst" object: printing it gives a one-line-per-step summary
# (cells modified by prewhitening, the trend test's cell count, the
# Theil-Sen slope range, and how many cells are significant after
# FDR-BKY correction).
result
#> <True Significant Trends (TST) result>
#> Prewhitening: 5987 of 15675 cells modified (38.2%)
#> Trend test: 15675 cells (Sm statistic)
#> Theil-Sen slope: median 0.0002692 (range -0.01121 to 0.009657)
#> Significant after FDR-BKY: 7881 (50.3%)
#> Use summary() for details, plot() for a map.

# Three reports worth seeing: how much of the map is significant at
# all, how fast the significant cells are changing, and which way.
plot(result, which = "significance")

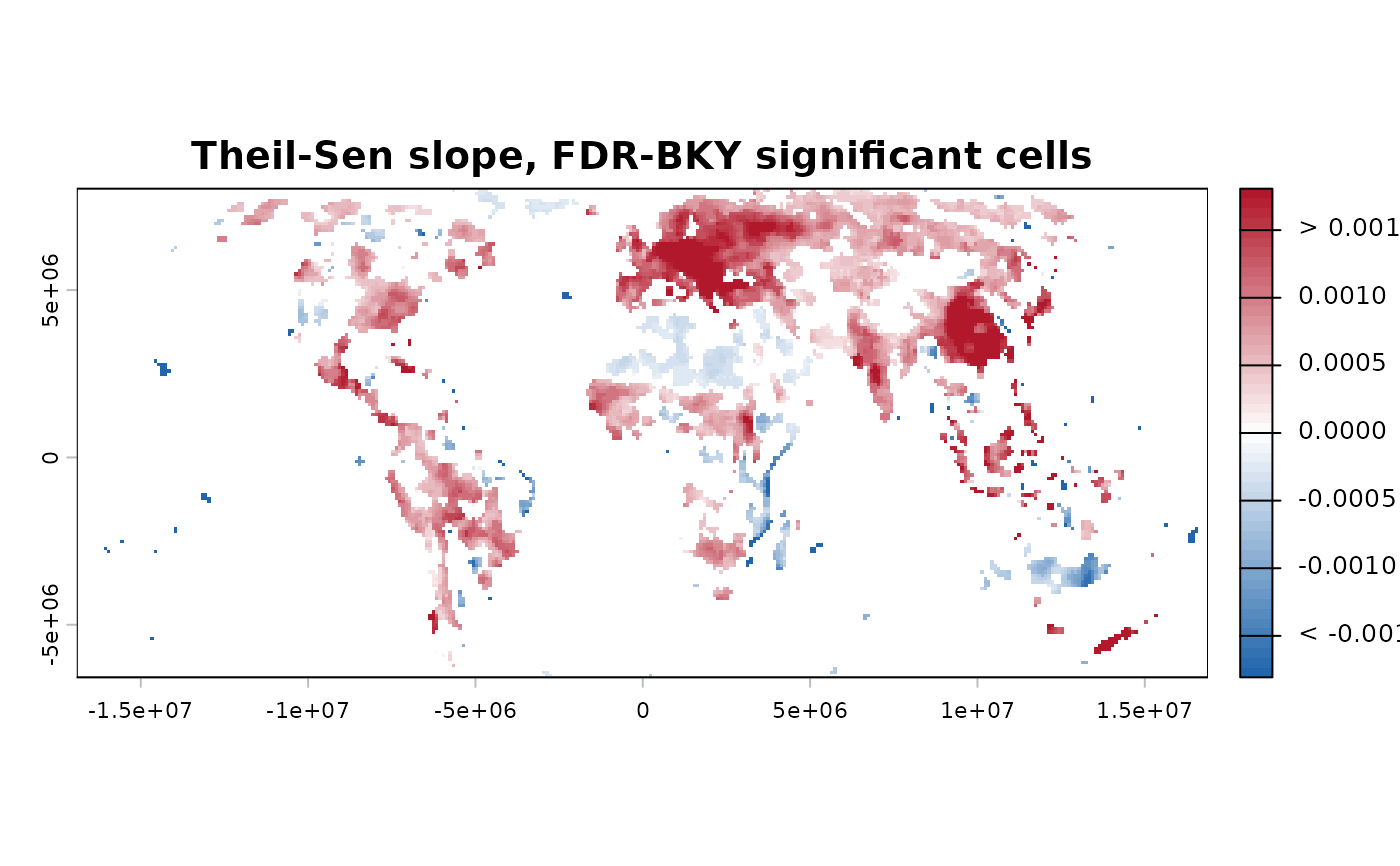

plot(result, which = "slope")

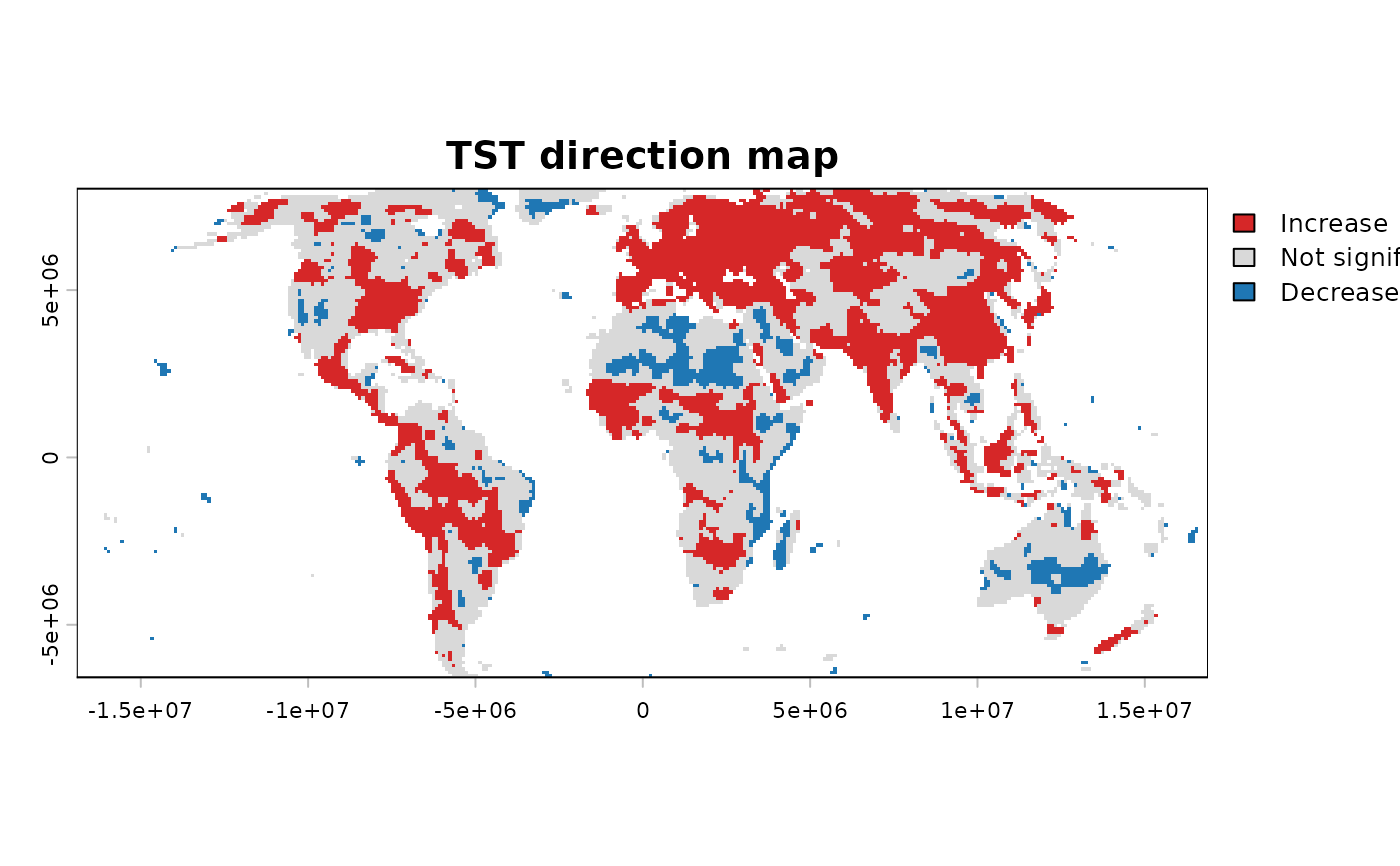

plot(result)

# }
